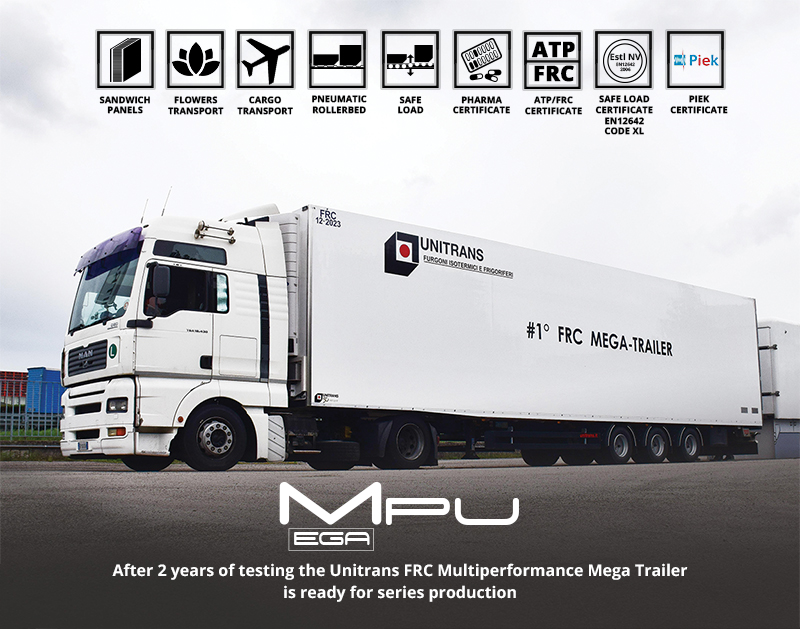

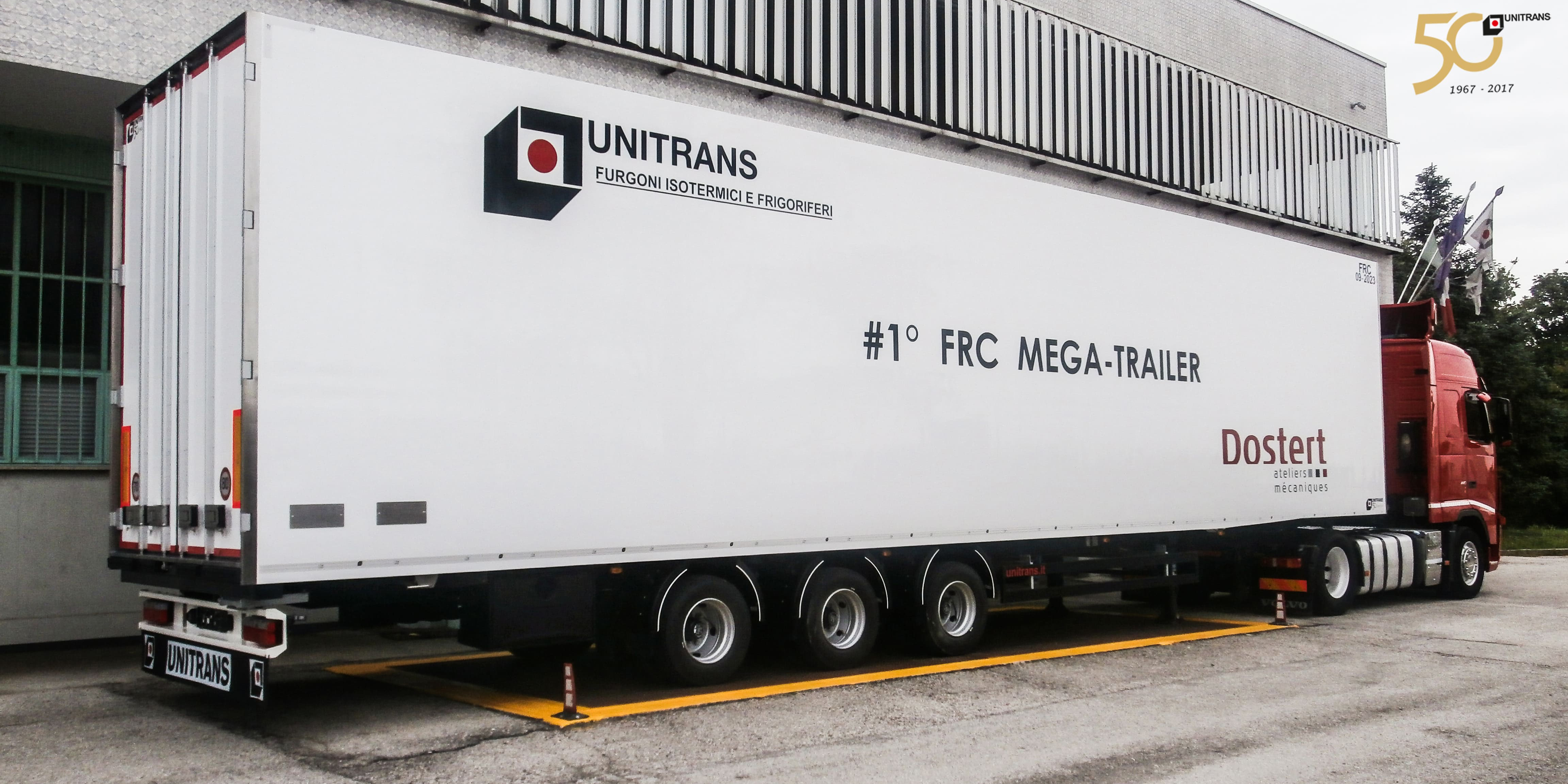

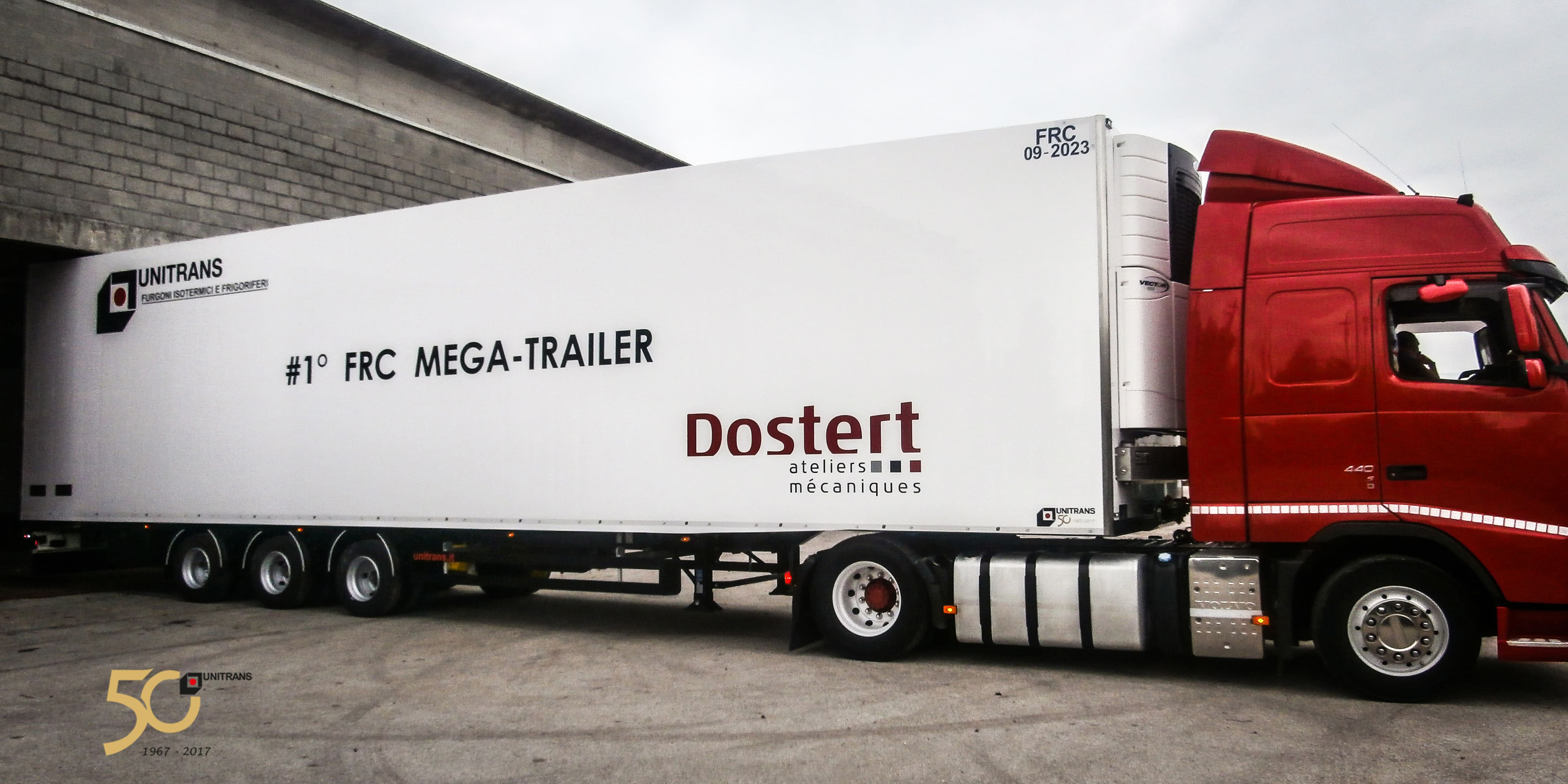

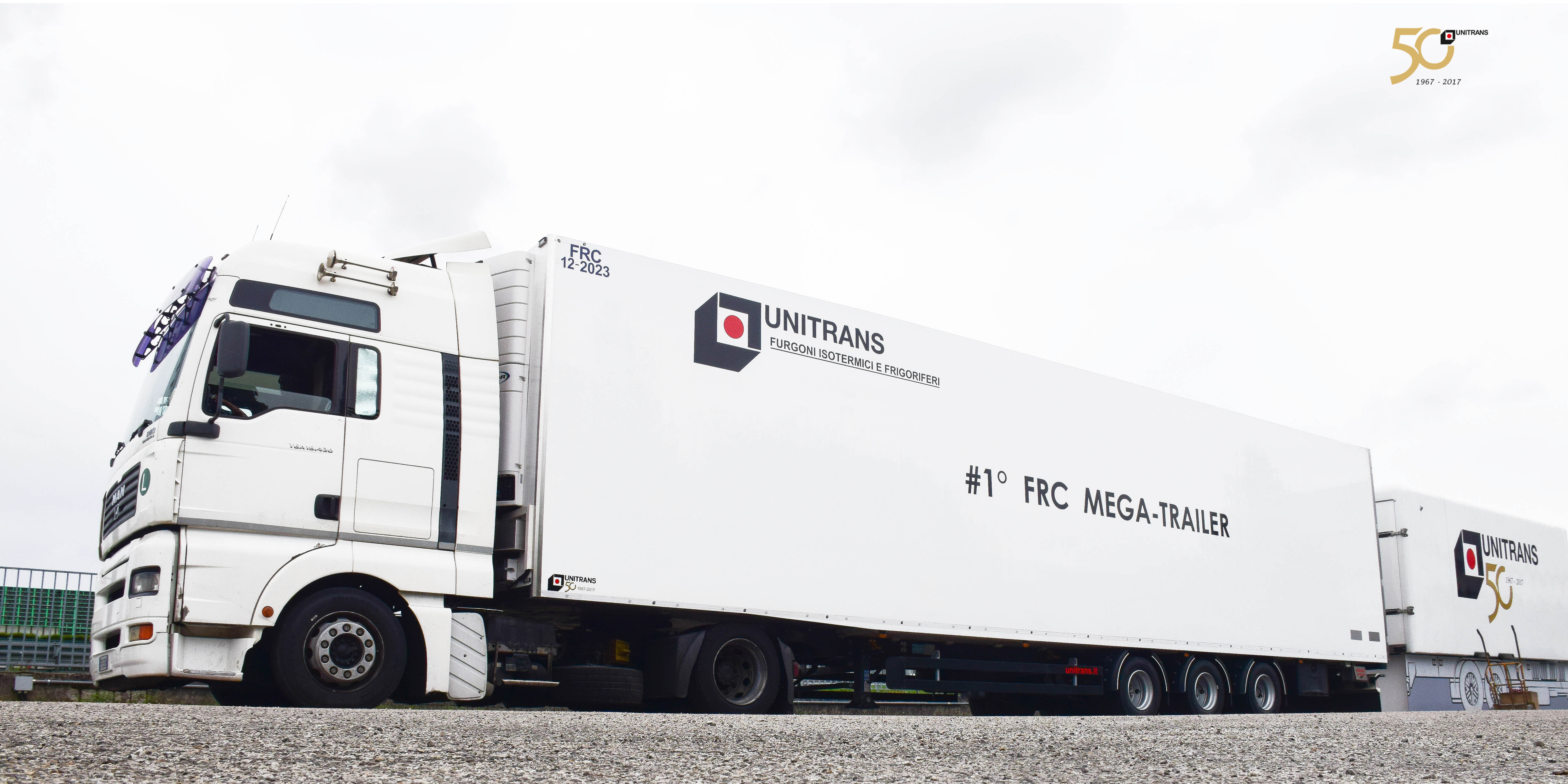

Mega-Trailer #1 FRC ever

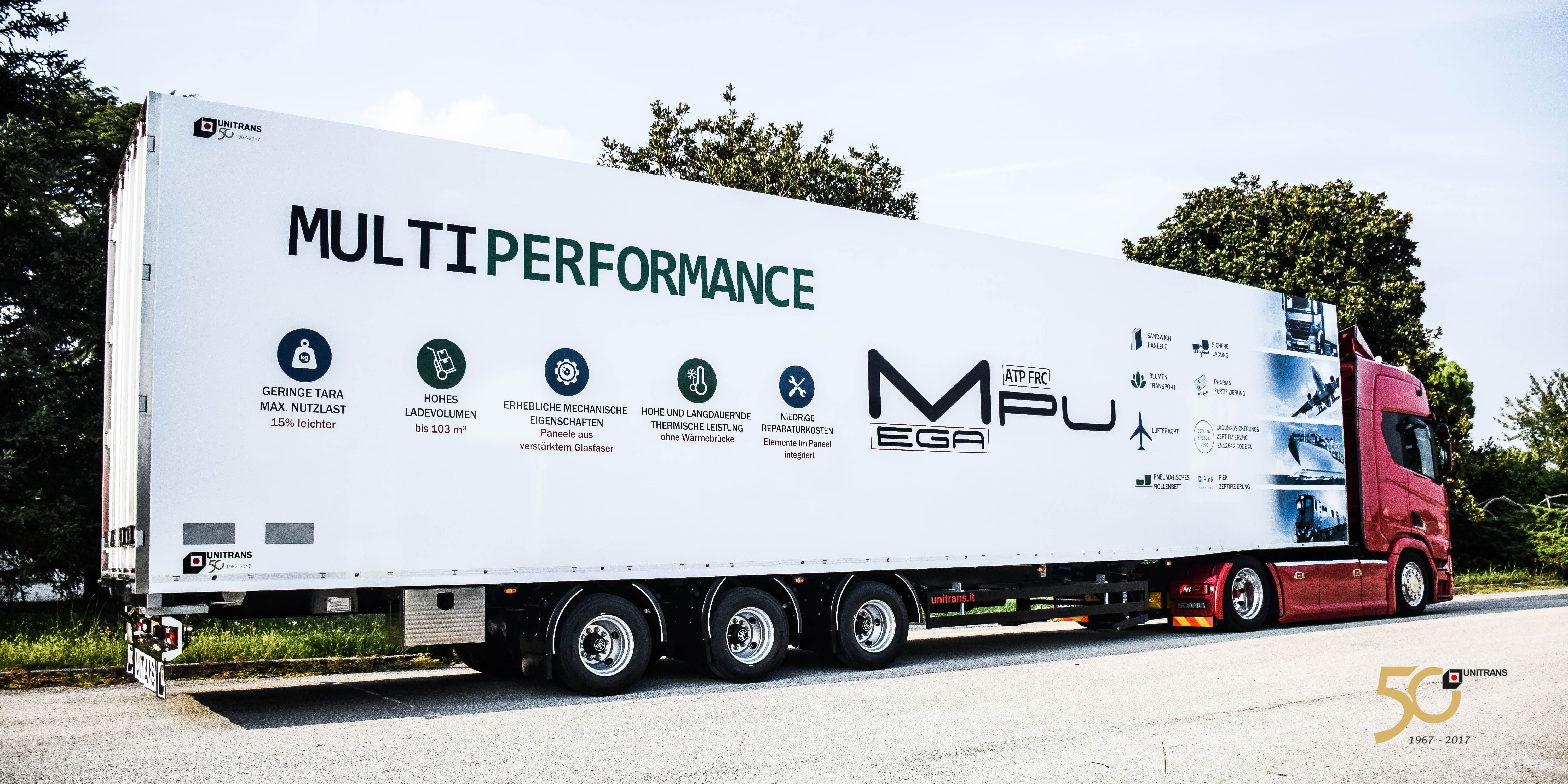

The MEGA TRAILER #1 FRC UNITRANS is the most technologically advanced and cutting-edge vehicle on the market, designed specifically for air cargo pallet transport. Its floor and sidewalls special structure with two different heights, with over 100 m3 of internal available volume, allows up to 3-4 JUMBO pallets to be transported, with obvious cost savings and limited environmental impact.

Use of special composite and insulating materials has allowed UNITRANS to establish a primacy so far never achieved, obtaining the FRC (-20 ° C) with a coefficient “K” of 0.39 W / m²K. The high range of CUSTOMIZATION responds to the many and multiple increasingly demands, searching of solutions that can meet high load stress while maintaining functionality, lightness and isothermy in terms of durability over time, factors that coupled with modern and essential aesthetics, make the MEGA TRAILER #1 FRC UNITRANS unique in its genre.

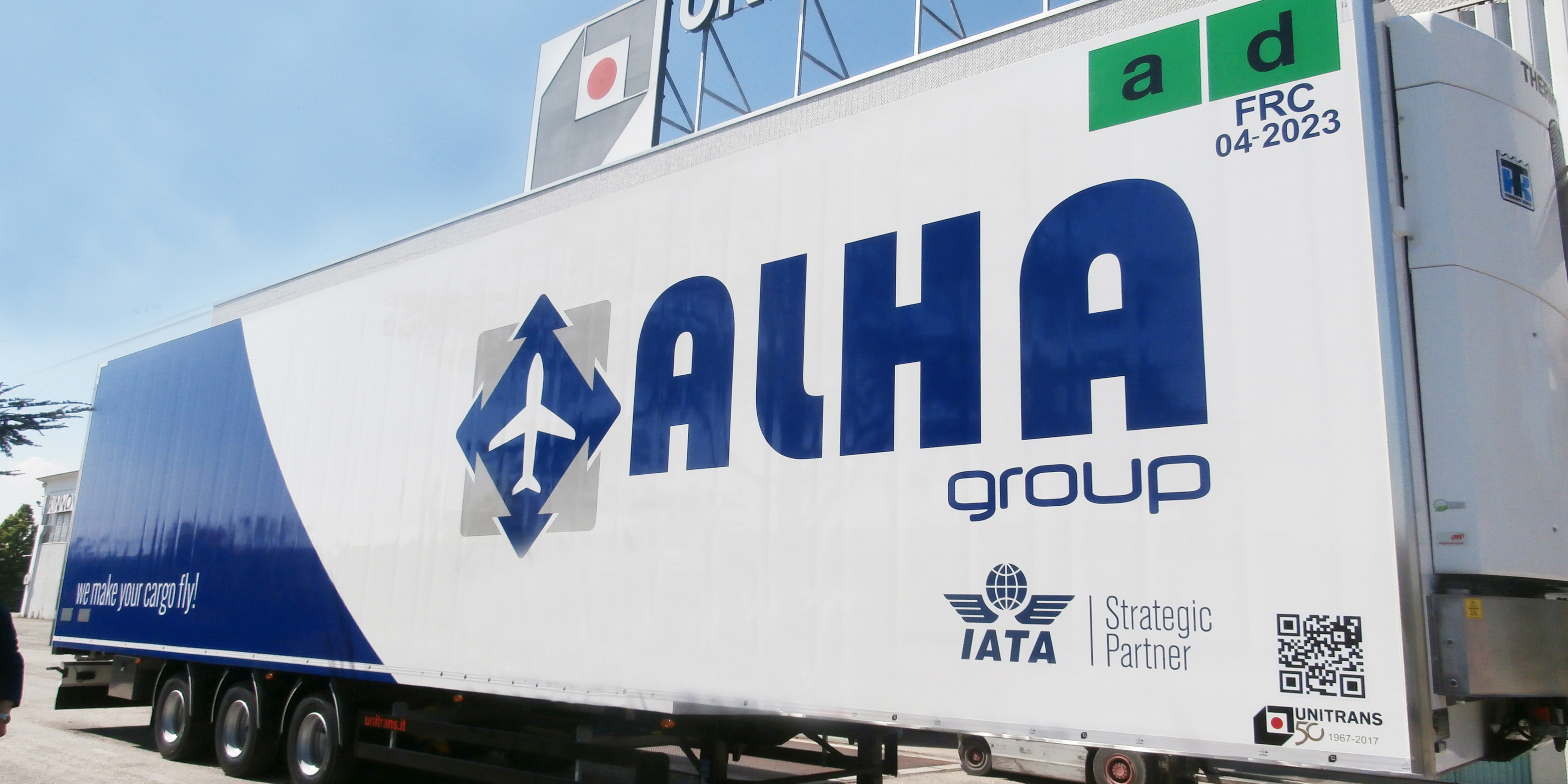

A.T.P. Class F.R.C. (Reinforced Isothermality), with refrigerating F.R.C. for transport as low as – 20°C
Floor Self-supporting and reinforced floor for pallets
Sidewalls Normal structure or carrying walls for meats transports on request
Roof Normal structure
Inside-finish Gel-coat suitable for foodstuffs transport
Outside-finish Gel-coat isophtalic white UNITRANS (other colors on request)
Isolation materials All UNITRANS refrigerating superstructures are manufactured with ecological isolation materials, according to CE regulations

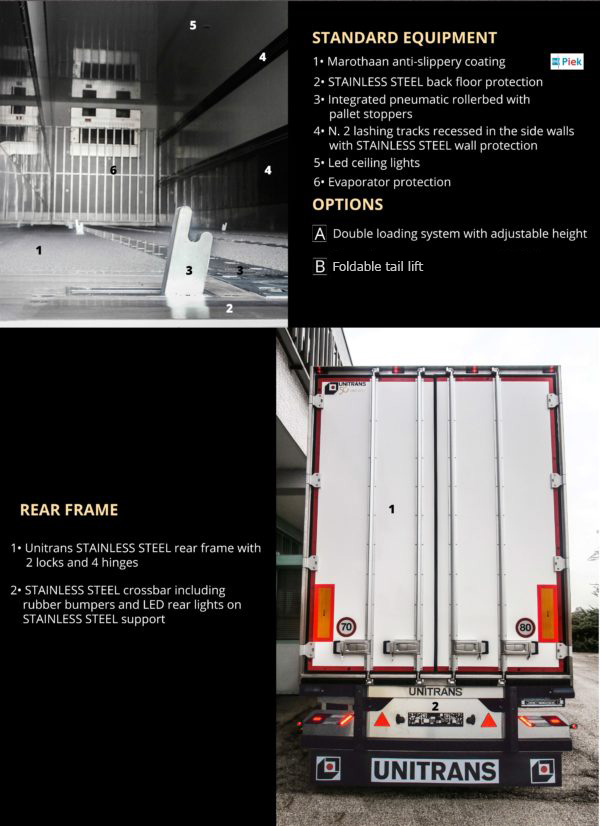

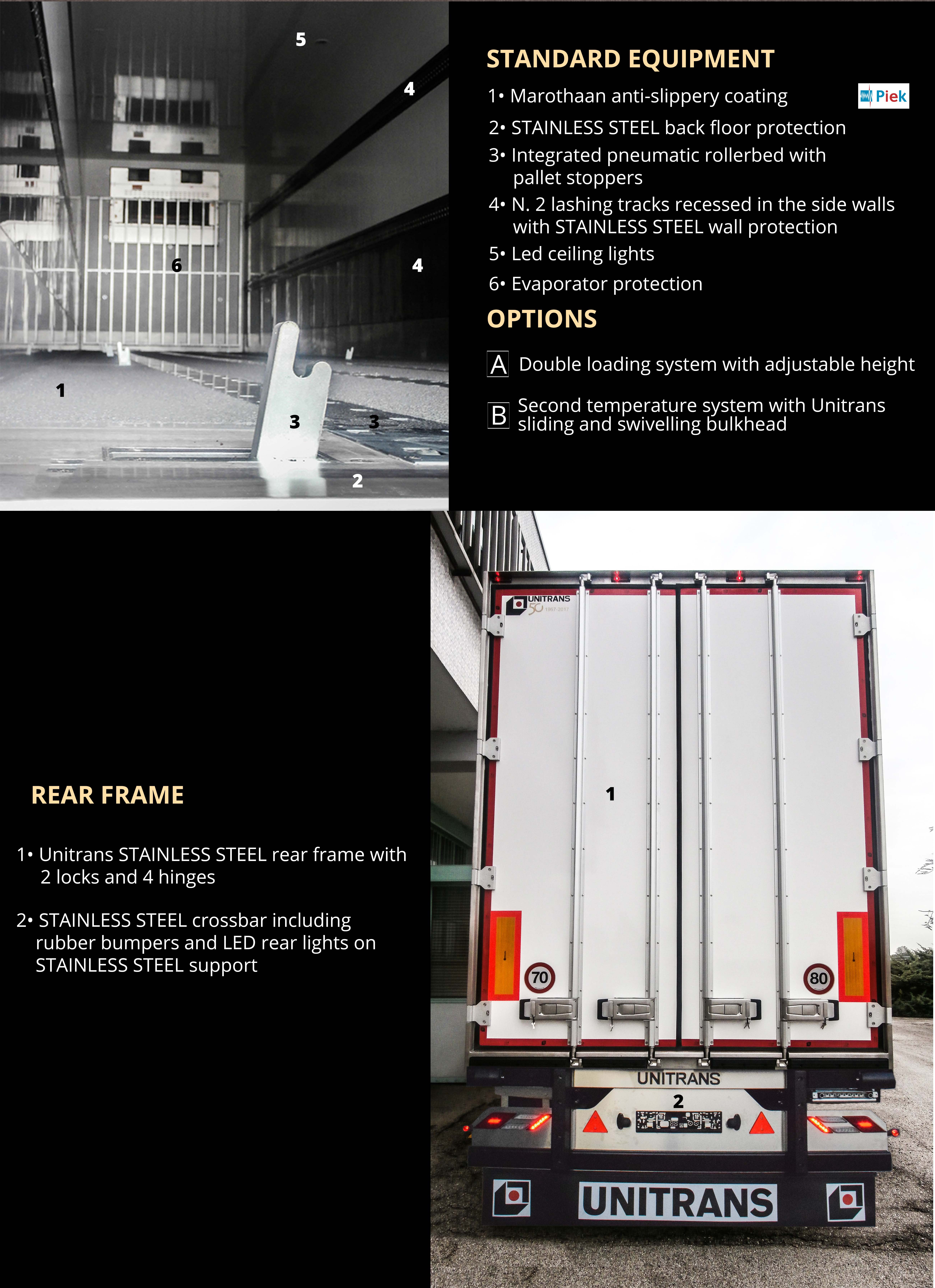

Standard outline description

  • Reinforced floor panel for pallet loading. Mega-trailer special floor structure and execution
  • Floor with “nose” in stainless steel
  • Stainless steel plate on rear floor part connected with rear frame and shaped for the roller tracks

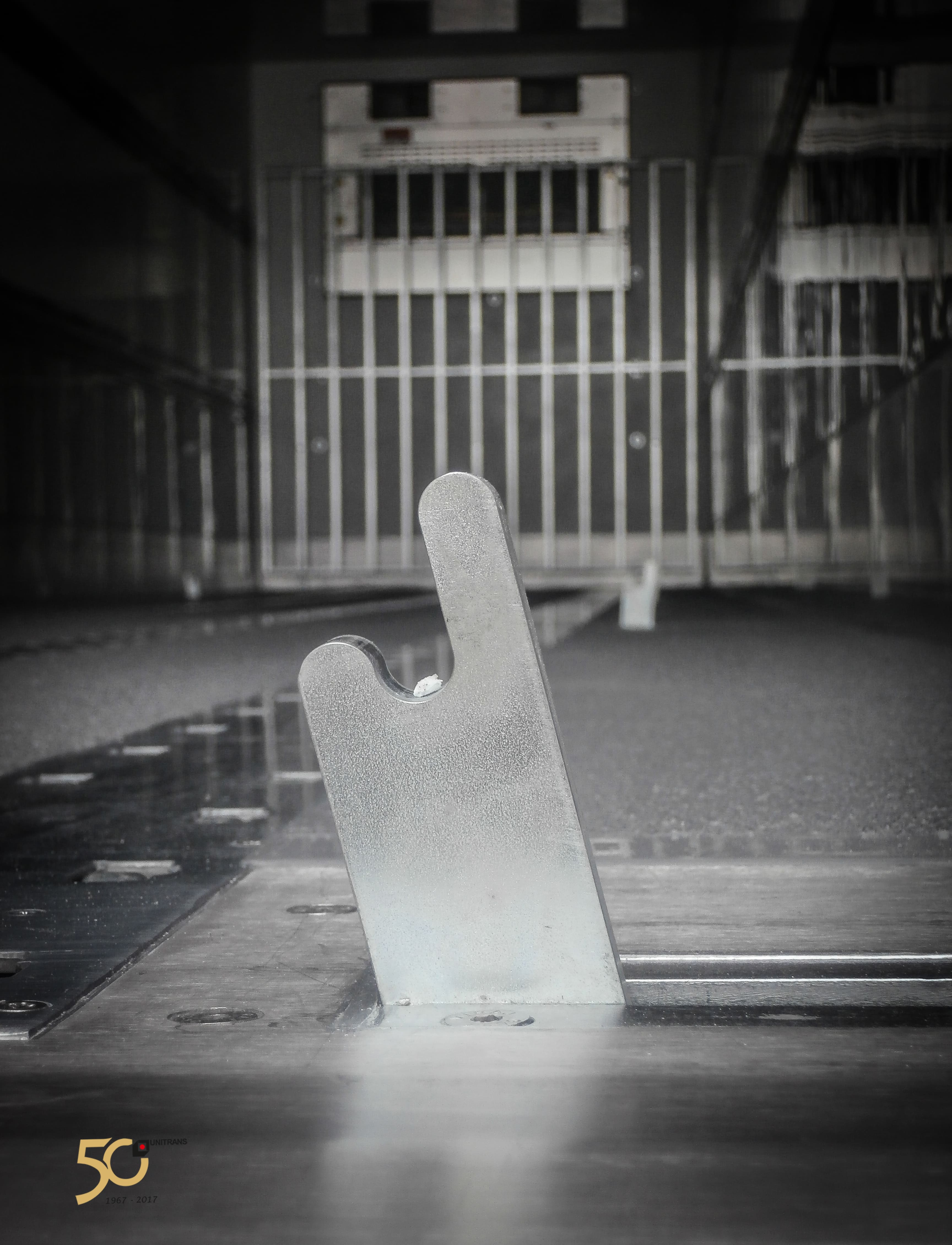

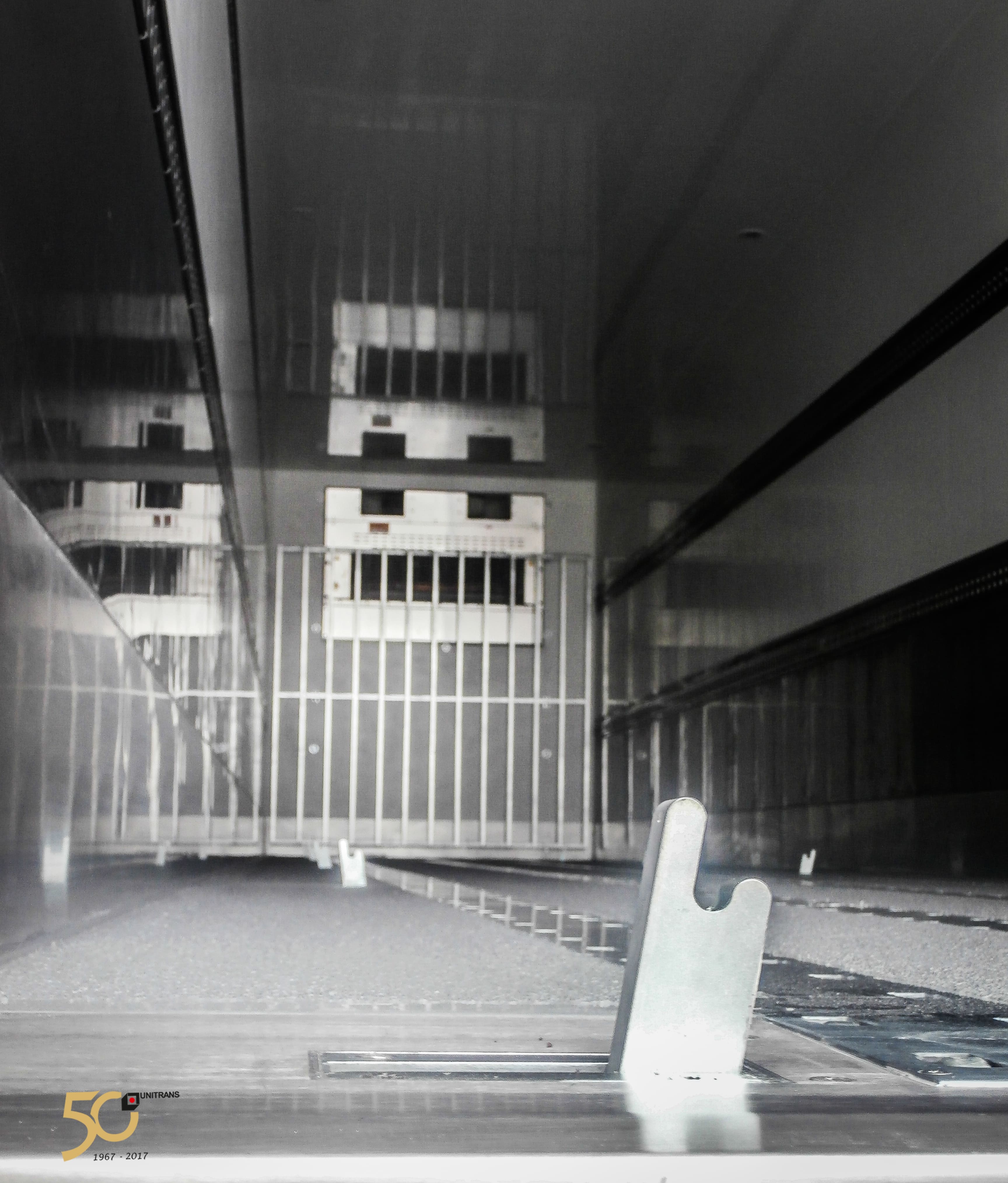

  • Pallet stopper on the floor

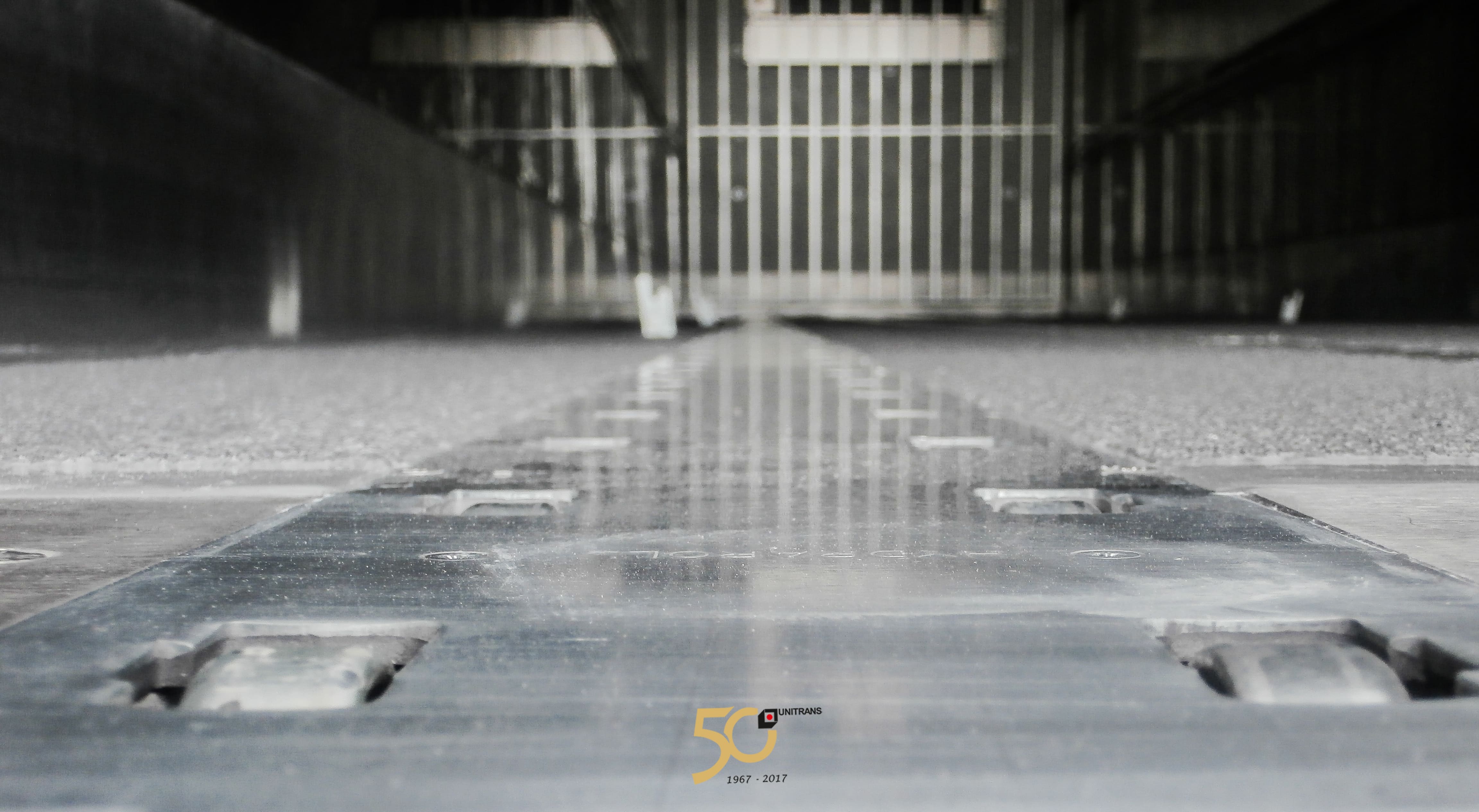

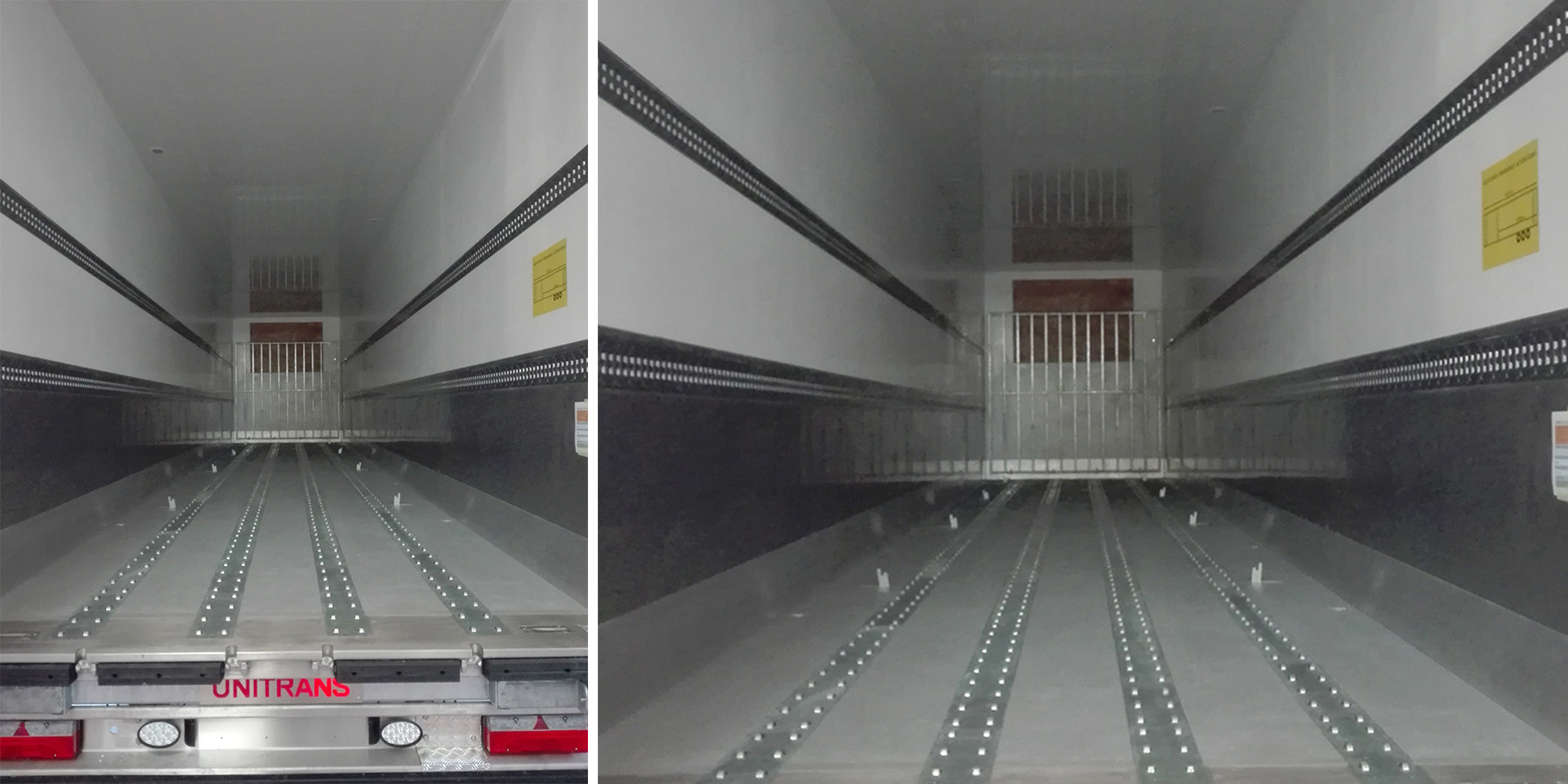

  • Floor with 4 Joloda roller-tracks completely recessed in the floor and connected to control unit (placed at the leften side of the semi-trailer) which divides the same into 4 zones

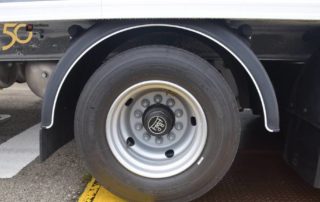

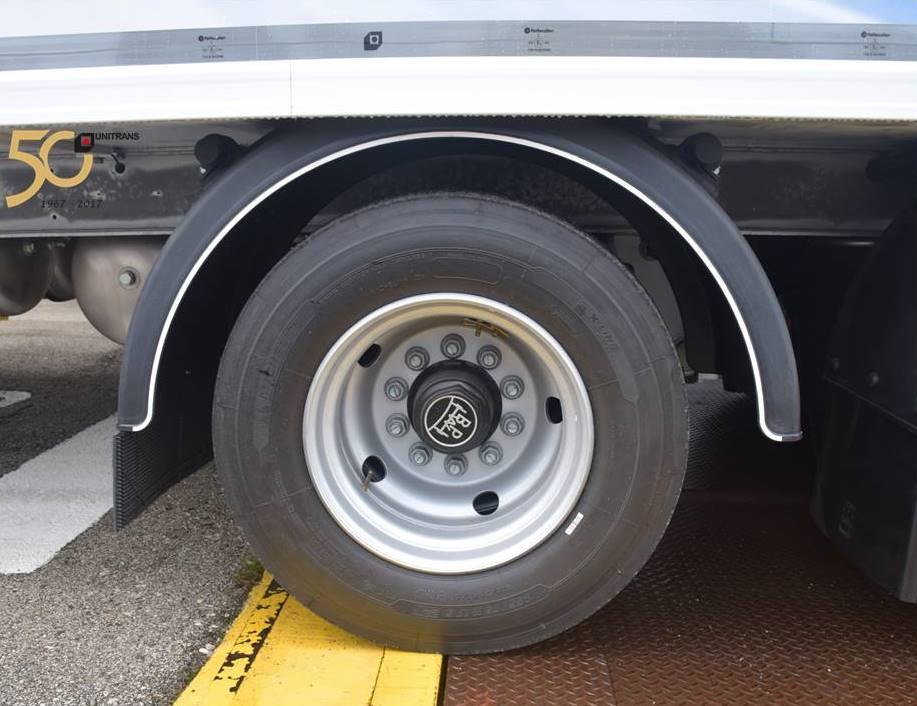

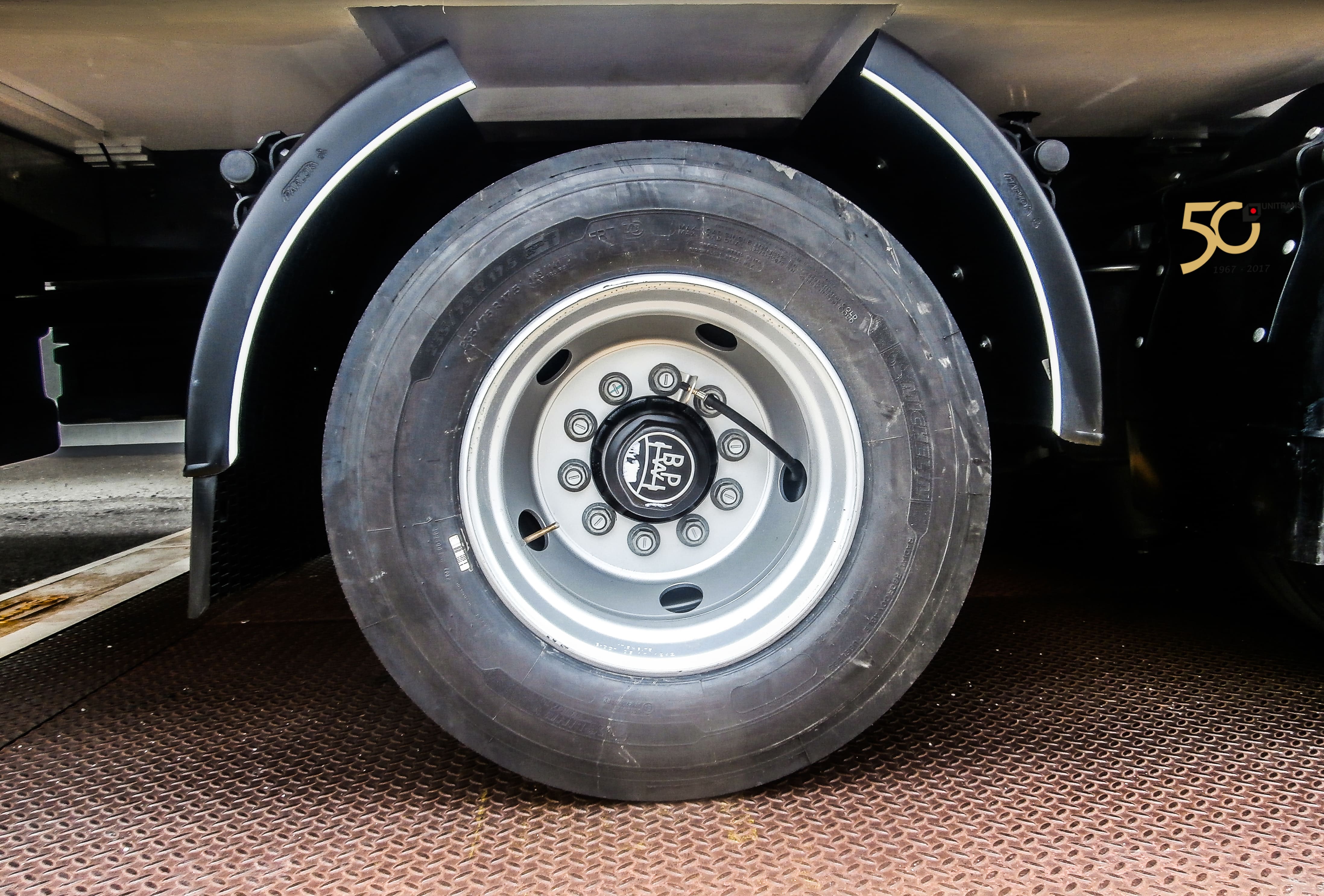

  • Pair of false wheel arch for axle (70 mm)

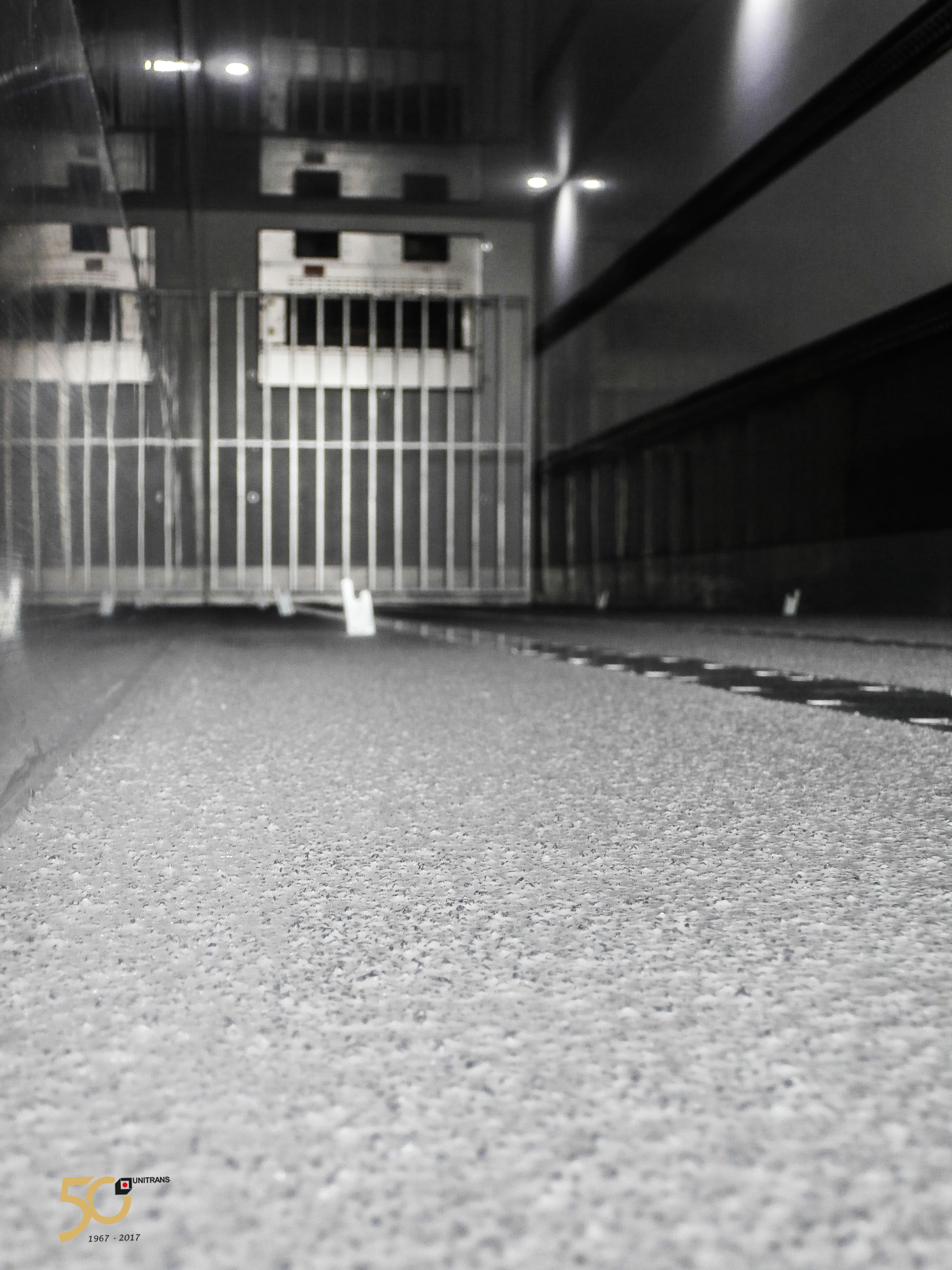

  • Anti-slippery Marothaan floor coating
  • Aluminium kick-plate, H. 300 mm from the floor, recessed on the side walls and front wall panels
  • Stainless steel lashing track recessed in the side walls, with position to be defined
  • Stainless steel plate 12/10 on the side walls, from the lashing track to the kick plate

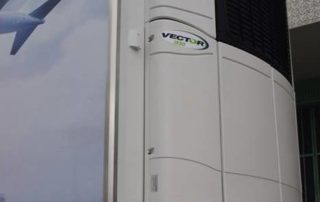

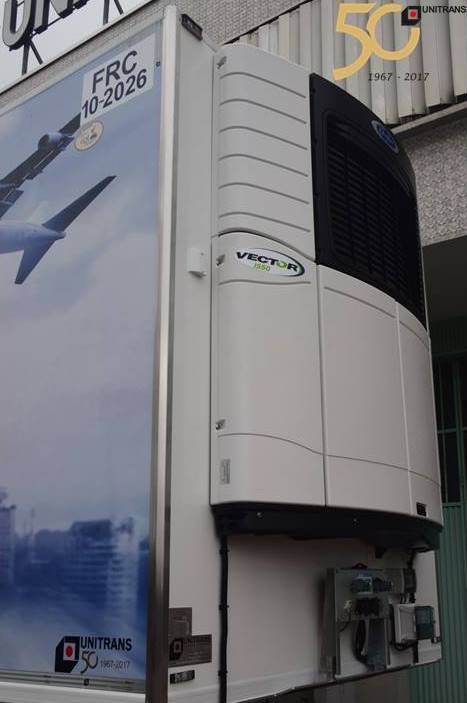

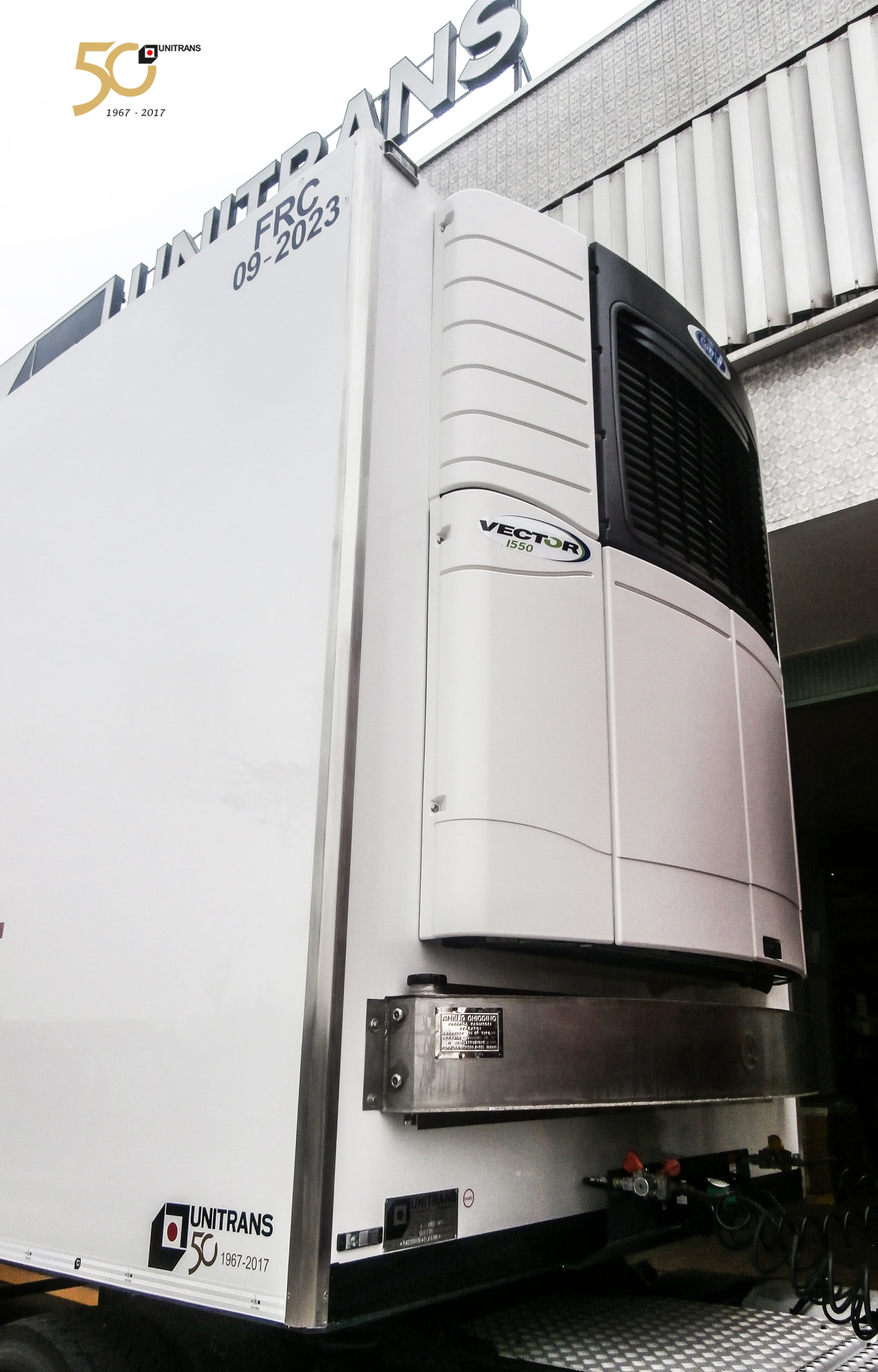

  • Reinforced front wall panel for the refigeration unit fitting

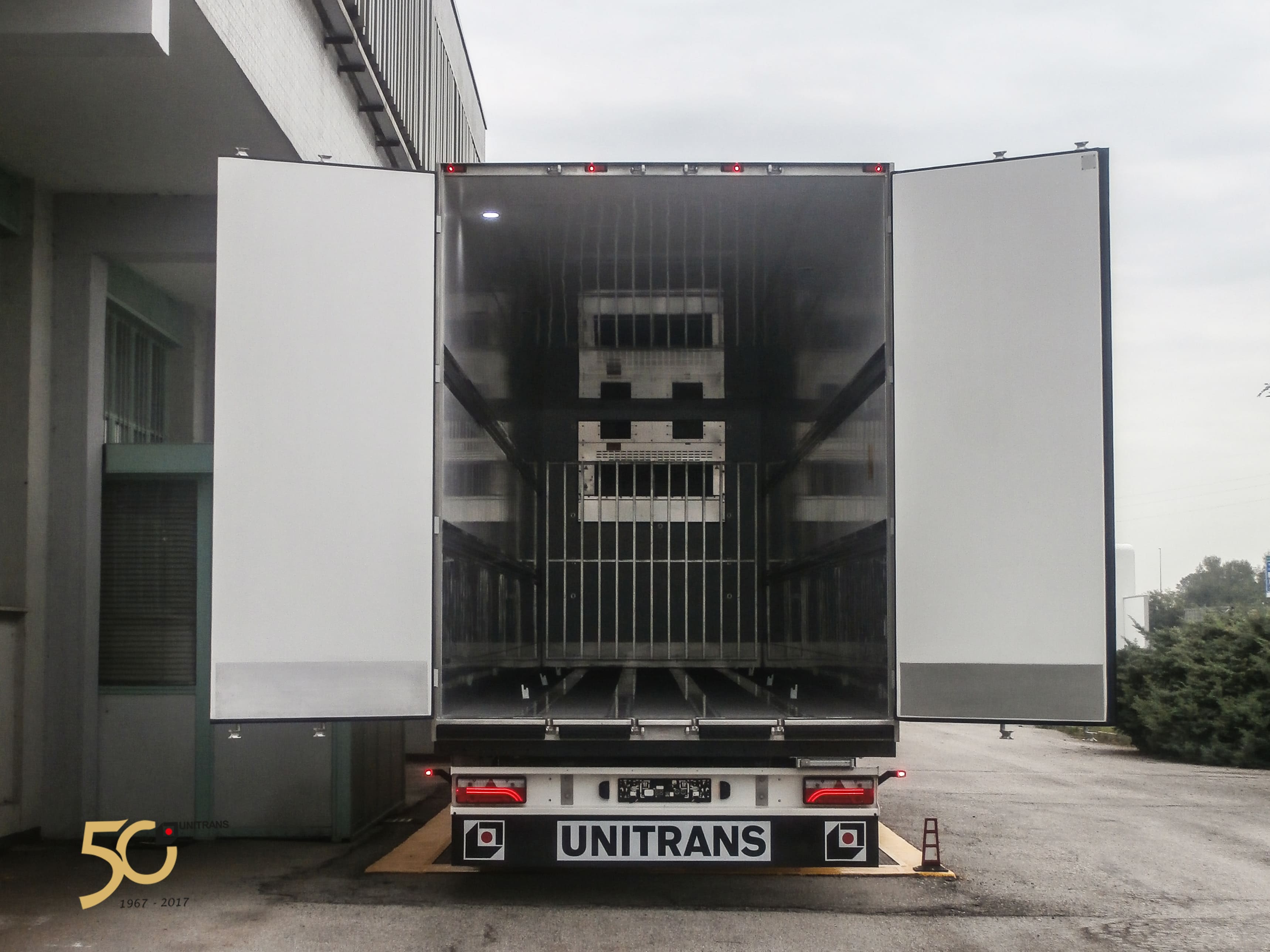

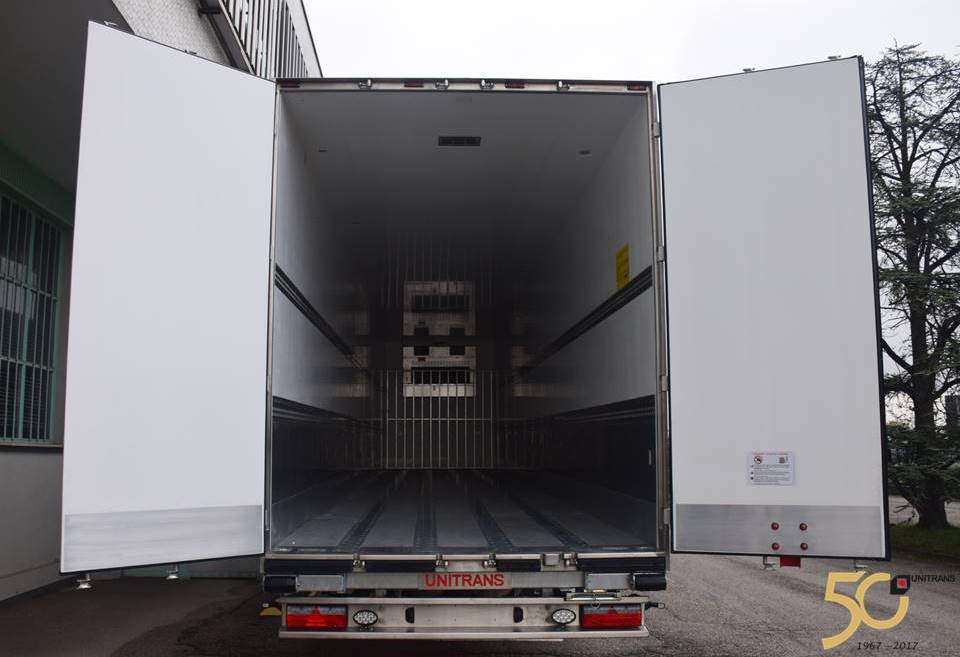

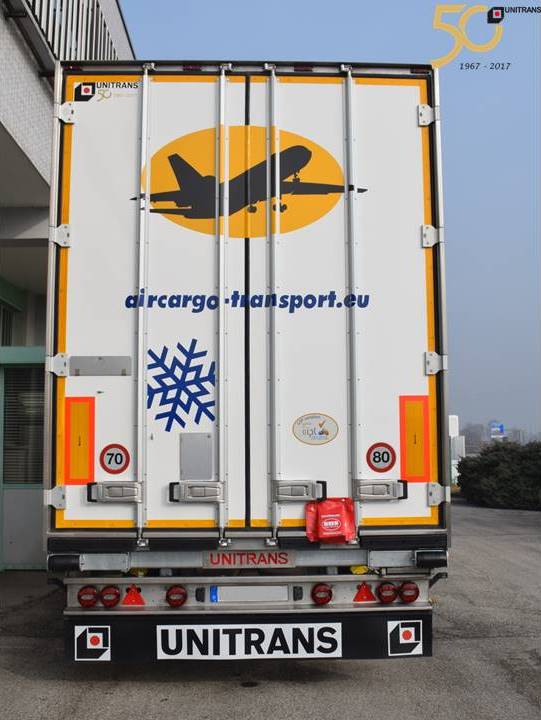

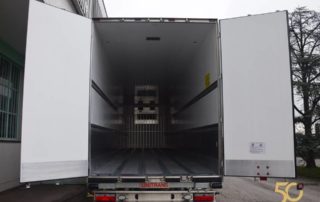

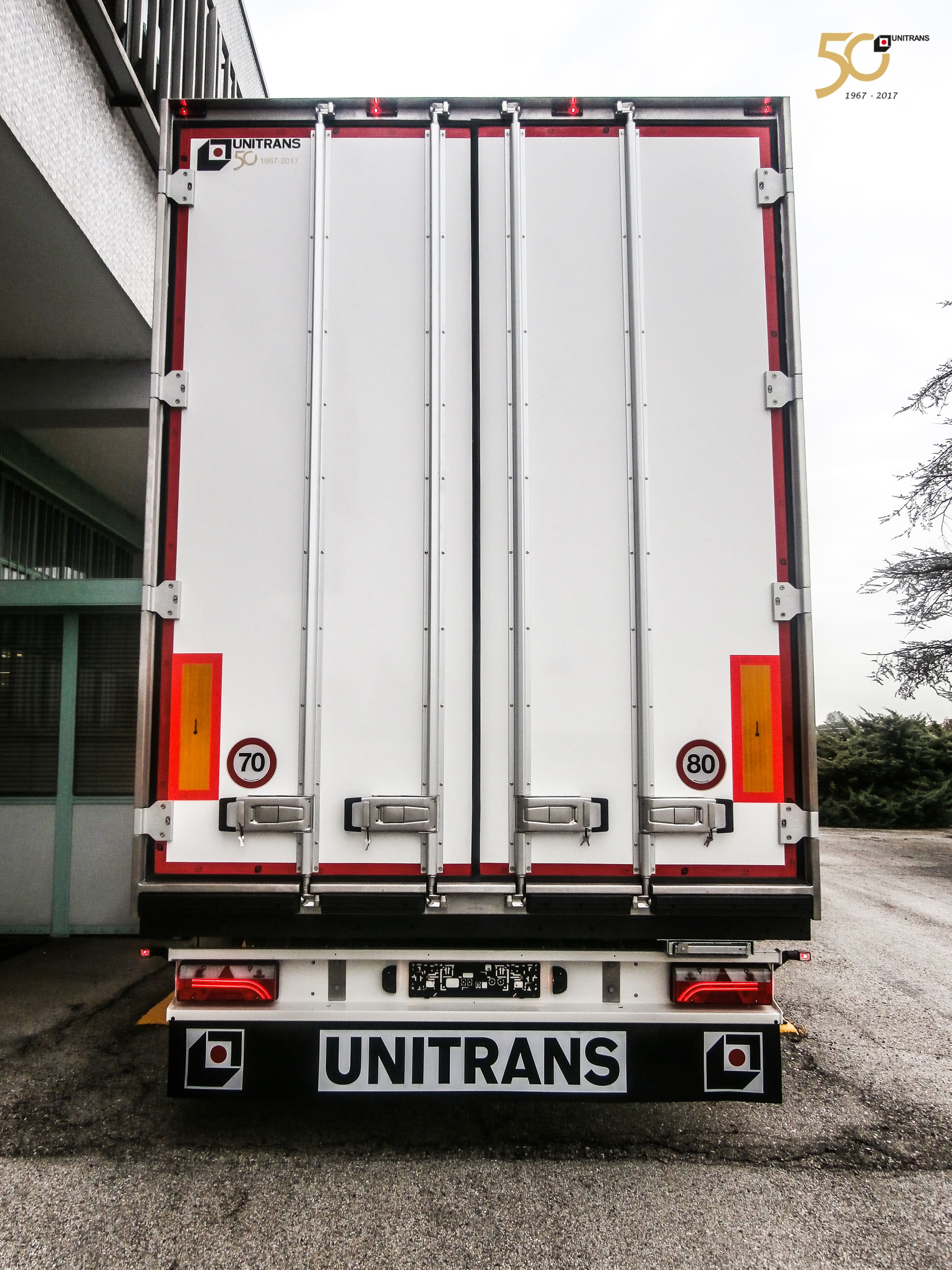

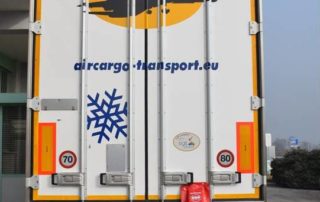

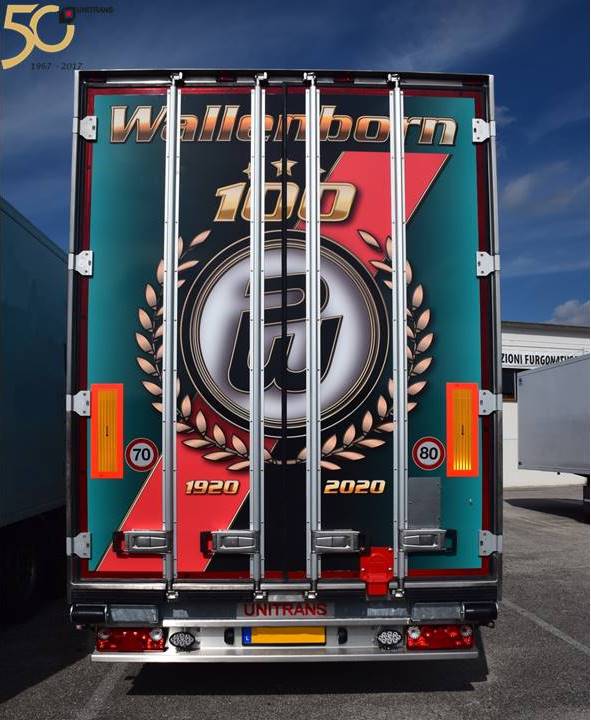

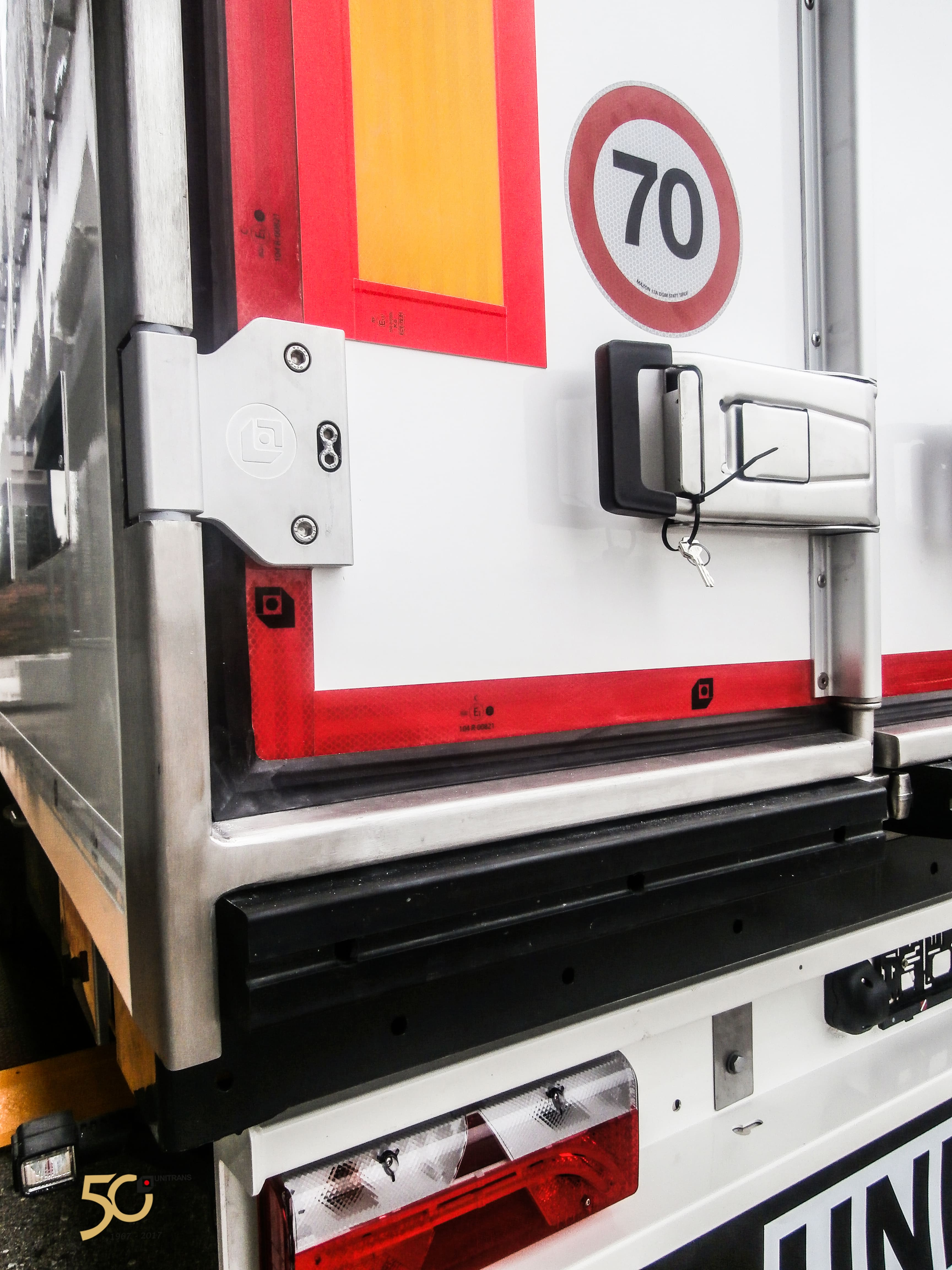

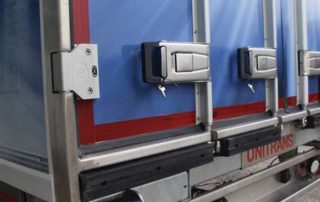

  • Maximum clearance full swing double rear door, EST type, with 2 locks and 4 hinges per door
  • Nr. 6 LED ceiling light with movement sensor
  • Door retainers and stainless steel protection plate for each door leaf

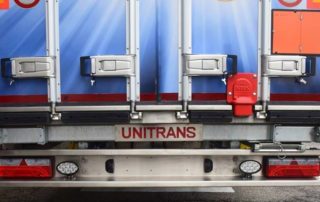

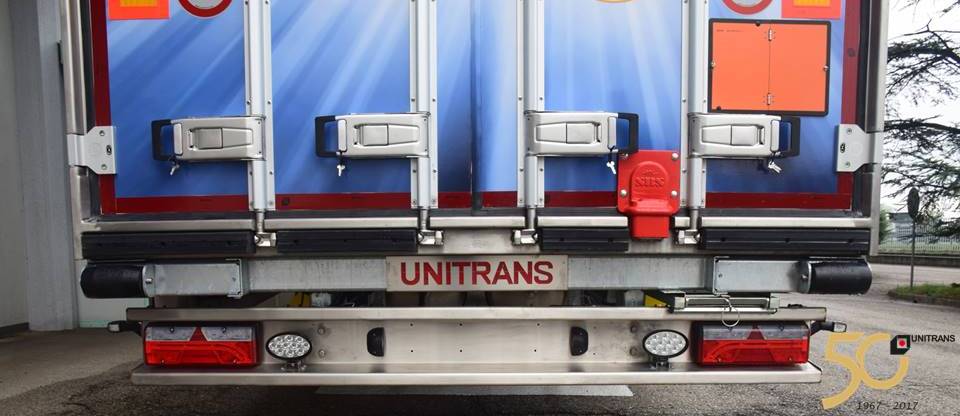

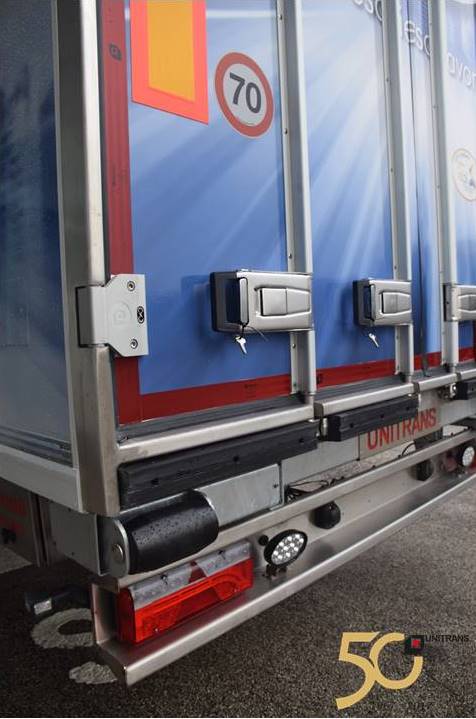

  • Unitrans “VR”-Series rear frame in stainless steel, thickness 4 mm
  • Unitrans type white gel-coat, RAL 9016 (or other color by choiche)
  • 4 x front marker lights SMR type (the top lights with stainless steel  protection) + 2 x rear top marker lights

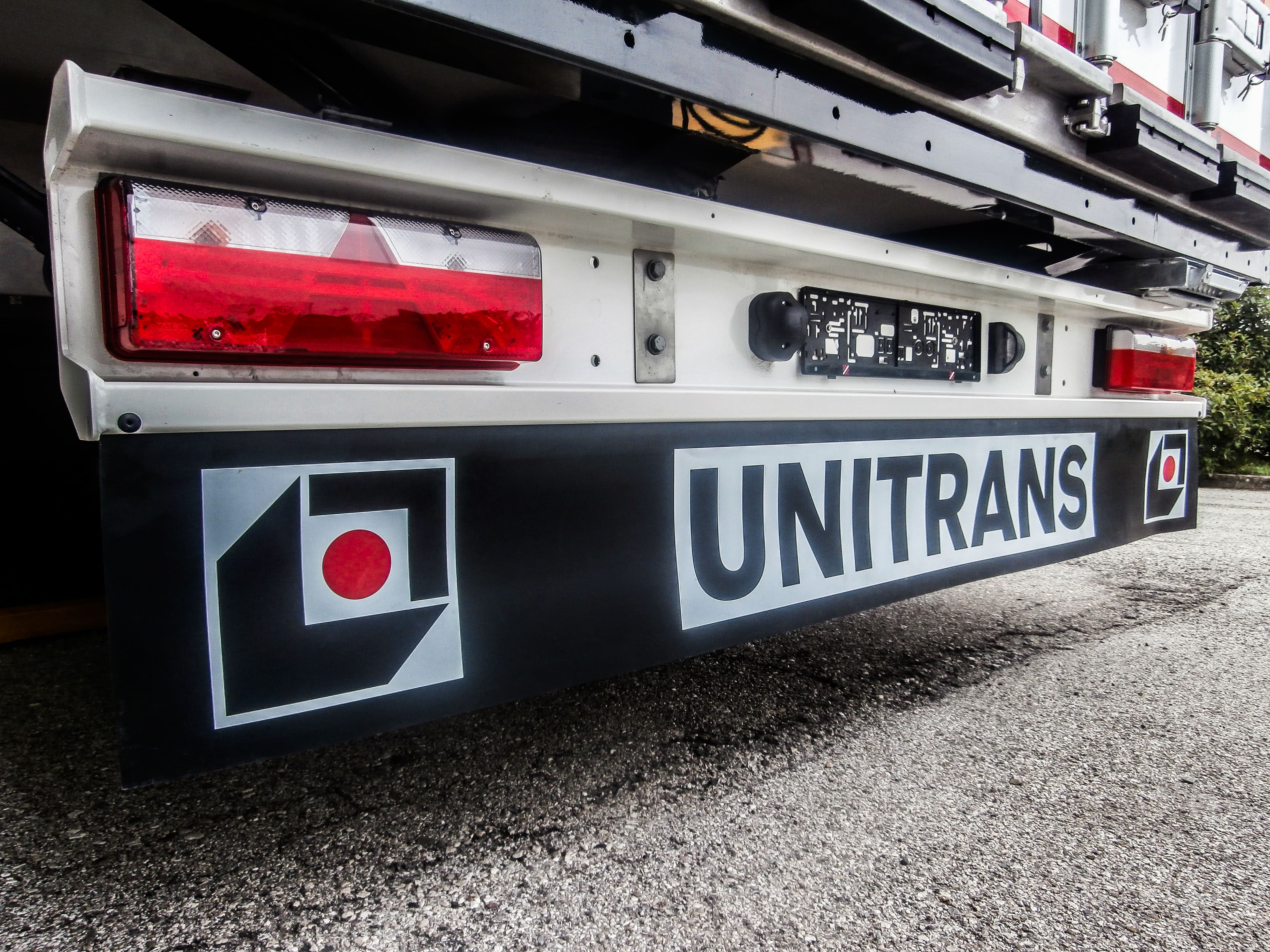

  • “VR” series rear rubber buffers


  • Double deck system

  • Foldable tail lift
